I. Product Overview
1.1 Product Description

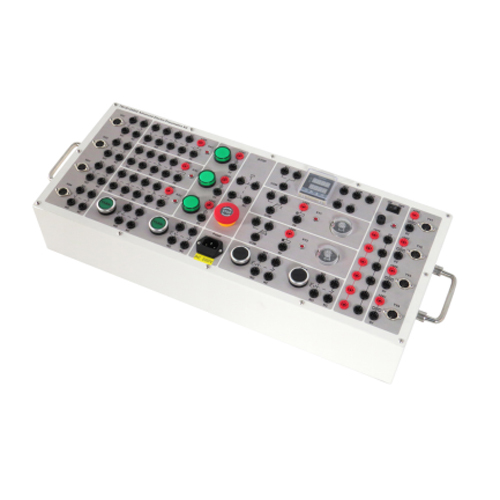

The equipment consists of an intermediate relay, a 24V indicator light load, an emergency stop switch, a counter, a delayed closing, a delayed disconnection, a 24V power output, an electromagnetic coil, a travel switch coil, a self-locking and self-resetting button, etc. It is suitable for experiments with other equipment and can help experimenters understand electrical equipment.
1.2 Product Features
1. High reliability and durability.
2. Avoid overload use.
3. Multiple configurations to adapt to different circuit requirements.
4. High isolation to ensure circuit safety.
5. Fast response to reduce control delay.
6. Easy to operate and quick response.
7. Stable structure, suitable for occasions with frequent operation.
8. Low power consumption, suitable for long-term operation.
9. High-precision counting, suitable for precise control.
10. Multiple counting modes to adapt to different counting needs.
11. Accurate delay control, suitable for automatic control.
12. Multiple delay settings to adapt to different application requirements.
13. Easy to operate and convenient to set delay.
14. High stability, suitable for various loads.
II. Performance Parameter
2.1 Technical Parameters
Input power: Single phase, three wires, AC220V, 50Hz
2.2 Dimensions and Weight
Dimensions: 800mm×280mm×190mm
Weight: <50kg
III. Product component names and function introduction
3.1 Product main part
|
No. |
Name |
|
1 |
Travel switch terminal |
|
2 |
Intermediate relay |
|
3 |
24V indicator light load |
|
4 |
Emergency stop switch |
|
5 |
Counter |
|
6 |
24V output power supply |
|
7 |
Solenoid valve coil |
|
8 |
Self-reset button |
|
9 |
Power interface |
|
10 |
Self-locking button |
|
11 |
Delay disconnect switch |
|
12 |
Delay open switch |
3.2 Product accessories
|
No. |
Name |
|
1 |
Inductive proximity sensor |
|
2 |
Capacitive proximity sensor |
|
3 |
Pilot-operated single-way flow control valve |
|
4 |
Three-core British power plug |
|
5 |
Trachea |
|
6 |
Trachea scissors |
|
7 |
Trachea plug |
|
8 |
Straight joint |
|
9 |
Pneumatic T connector joint |
|
10 |
4mm electrical cable (red) |
|
11 |
4mm electrical cable (black) |
|
12 |
Fuse |
|
13 |
DIN socket (3P) |
|
14 |
DIN socket (4P) |
|
15 |
U disk |
IV. Product Configuration List
|
No. |
Name |
Quantity |
|
1 |
Travel switch terminal |
4 |
|
2 |
Intermediate relay |
3 |
|
3 |
Self-reset button |
2 |
|
4 |
Self-locking button |
2 |
|
5 |
24V indicator light load |
3 |
|
6 |
Emergency stop switch |
1 |
|
7 |
Counter |
1 |
|
8 |
Delayed opening switch |
1 |
|
9 |
Delayed disconnection switch |
1 |
|
10 |
24V output power supply |
6 |
|
11 |
Solenoid valve coil |
4 |
|
12 |
Electric valve group |
1 |
|
13 |
Inductive proximity sensor |
1 |
|
14 |
Capacitive proximity sensor |
1 |
|
15 |
Pilot-operated single-way flow control valve |
2 |
|
16 |
Three-core British power plug |
1 |
|
17 |
Trachea |
50m |
|
18 |
Trachea scissors |
1 |
|
19 |
Trachea plug |
10 |
|
20 |
Trachea joint |
5 |
|
21 |
Pneumatic T connector joint |
5 |
|
22 |
4mm electrical cable (red) |
20 |
|
23 |
4mm electrical cable (black) |
20 |
|
24 |
Fuse |
5 |
|
25 |
DIN socket (3P) |
4 |
|
26 |
DIN socket (4P) |
4 |
|
27 |
U disk |
1 |
V. Experiment list
Experiment 1 Intermediate relay test
Experiment 2 Delayed connection test
Experiment 3 Delayed disconnection test
Experiment 4 Equipment test experiment
